DLC130/150

HITACHI continuous inkjet printer technology also allows non-contact printing flexibility to mark on rough, uneven or varied surfaces from any direction.

DLC130/150

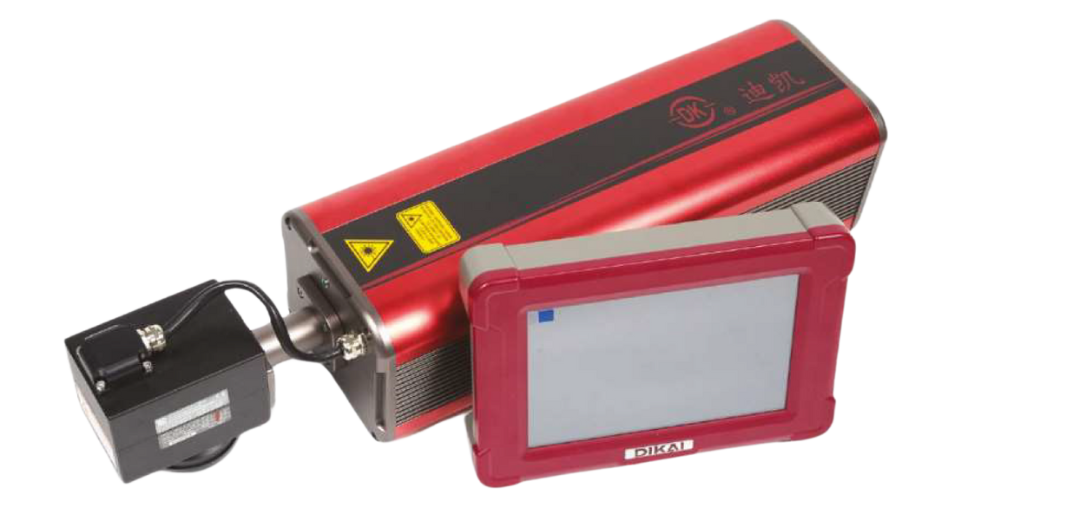

All in one CO2 Laser

Using a new intelligent vector control algorithm, marking speed greatly improved, all in one compact structure, whether the conveyor line or punch packaging machine can be easily installed. Permanent and high contrast marking to ensure product can be tracking, anti-counterfeiting and anti-channelization.

Features:
  • Patented Technologies
  • Fast frequency, Lower power consumption
  • Up to 1500 characters/second
  • New intelligent control algorithm
  • Unique design for better integration
  • Anti-electromagenetic interference design
  • 24 hours of cmtinuous operation, MTBF more than 50,000 hours
  • Print on film, plastic, glass, leather and other materials.
  • Non-consumable.permanent identification
  • One-button startup reduces daily misoperation
  • Automatically jump to the running mode after startup
  • Friendly user interface, more convenient operation
DLC130/150
Specifications:
Model DLC130 DLC150
Laser Type CO2 Laser, wavelength=10.6μm, 10.2μm, 9.3μm MTBF 50,000 hours
Laser Power 30W 50W
Features
CPS 1200* 1500*
Speed 200M/Min* 300M/Min*
Lines Unlimited Within Marking Area
Height 0.8mm~Max Marking Area
Fonts 26 Fonts, multiple languages, Custom Fonts
Bar Codes Code 128, Code 39, Data-Matrix Code, QR Code
Logo Graphic BMP/DXF/HPGL/JPEG
Elements Point, Linear arc, rectangle, polygon, ellipse, circle
Variable Serial number, text, date, time, counter, shift code
Marking Area 50X50mm, 70X70mm, 110X110mm, 140X140 mm, 175X175mm, 210X210mm
Focal Distance 63mm,100mm,163mm, 210mm, 254mm, 330mm
Functions 10.1 inch Color Touch Screen, QWERTY or AZERTY Virtual Keyboard, Quick Icon Wizard Operation, Online Help, Multi-Language, Ethernet Remote PC Operation
Material Anodised Aluminium
Input/Output
Sensor NPN/PNP/24V Sensor or Trigger Signal
Encoder Encoder or Synchronizing Signal
Signal Input Start, Stop, interlock Signal
Signal Output Operation Status Indication, Cooling Device Control, Machine Remote Control
Communication Ethernet(10/100 MBit), USB Post
Facilities Condition
Power Supply 220V AC,50-60Hz,750W
Cooling Air Cooling
Op Environment 5-40C,10%-90%RH, No Condensation
IP Rating IP54, IP65 Optional
Optional Network and Remote Control Software (TCP/IP), USB Backup Storage Kit, Bracket, Smoke Purifier

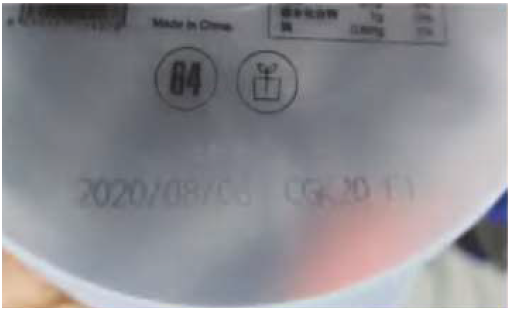

Samples:

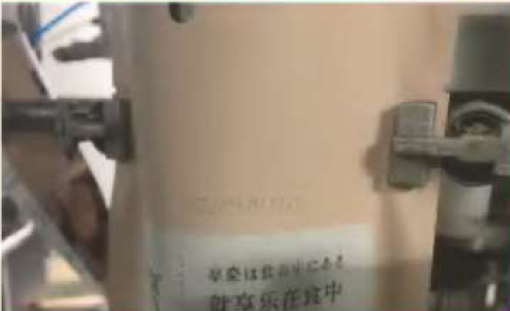

Pre-made Pouch Fill & Seal Machine
Grind Arenaceous Effect

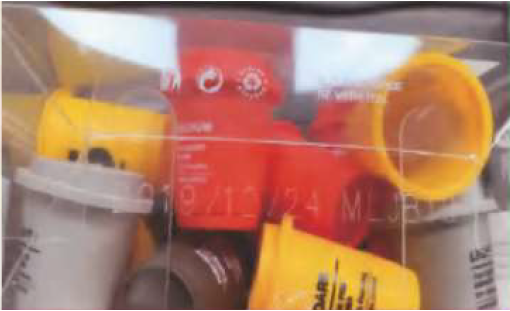

Plastic

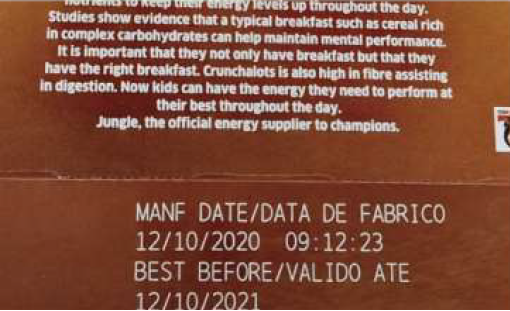

Paper

* Print characters per second, production line speed depends on packaging material and print content
