HITACHI continuous inkjet printer technology also allows non-contact printing flexibility to mark on rough, uneven or varied surfaces from any direction.
Demands of modern operation is changing continuously. More information is required on consumer packaging and you need to be sure that your printing (coding) equipment can keep pace, even if reduced space is allotted for the code. Our new High Speed printer is the ideal solution for high speed applications like for cable production, automotive or beverage industry.

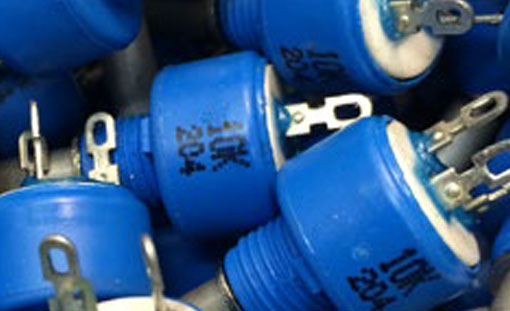

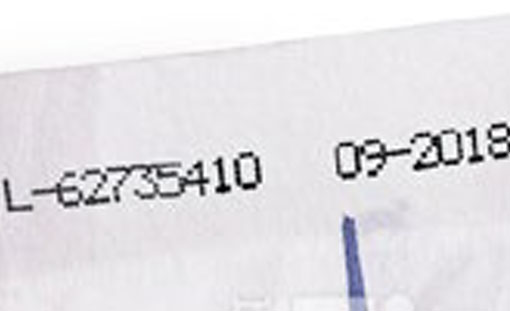

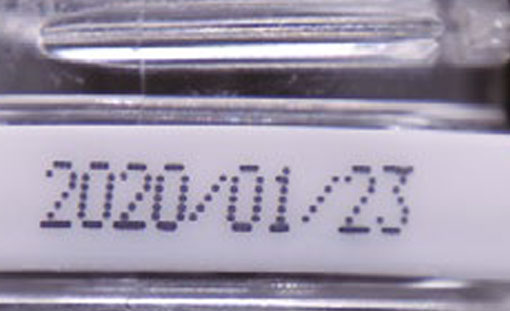

At printing speed up to 650m/min our new printer can produce tiny and easily legible prints on the smallest surfaces (even if reduced space is allotted for the code). Codes remain easy-to-read even if the height is short (1-4 mm) — among others this is a key issue in cable production.

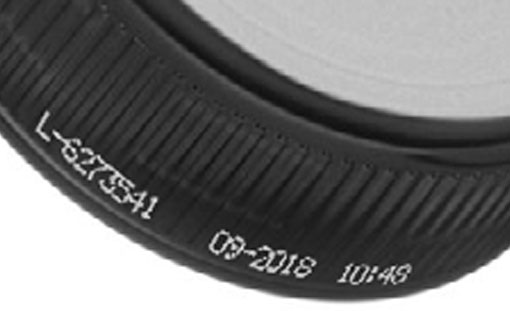

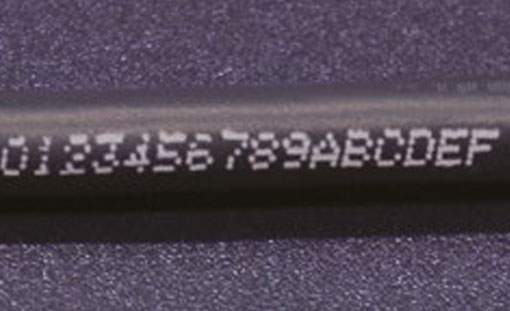

Printing on dark surfaces can be a challenge. Hitachi developed a white pigmented ink with an excellent adhesion and clearly readable prints on any dark surfaces.

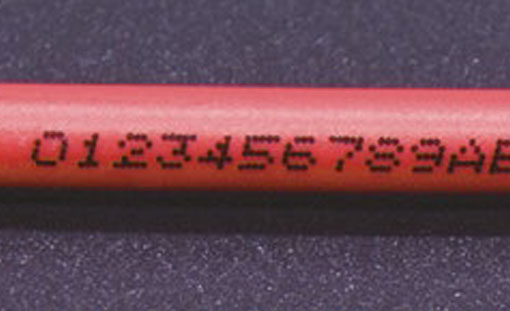

New meter marking function, ideal for the cable industry. Supports optional function to detect and restart printing correctly when rotating forward.

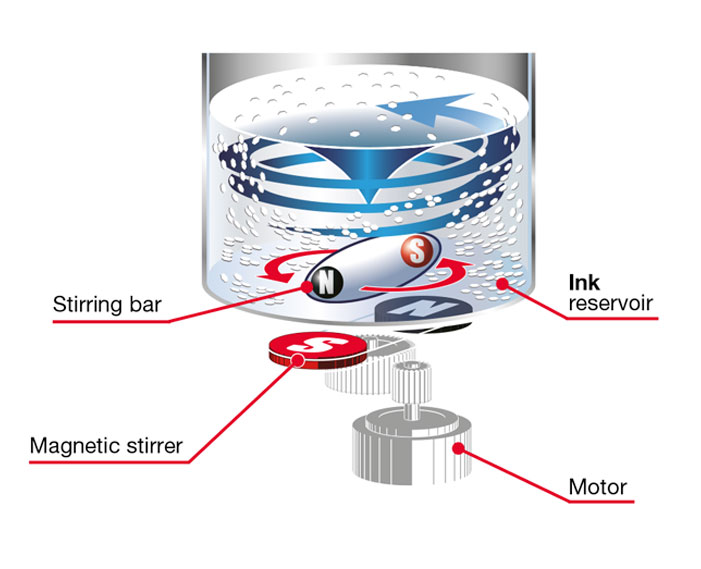

Most pigmented inkjet systems require air to prevent settling and agglomeration, but the UX-H inkjet printer relies on a simple, yet highly effective Magitate system. This system reduces filter and nozzle clogging and eliminates the need for costly modification to your compressed air sytem.
Print Speed 80m/min
Print Speed 100m/min
Print Speed 140m/min
Print Speed 140m/min
| Item | UX-H140W/S | |
|---|---|---|
| Nozzle Size | 48μm | |
| Maximum number of print lines | Up to 2 lines | |
| Maximum number of print characters | Up to 1,000 characters (Depends on print line number) | |
|

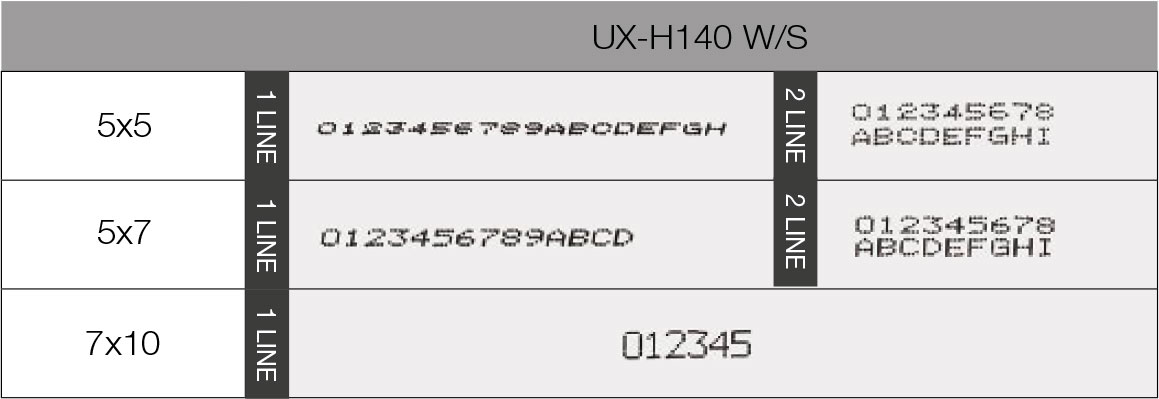

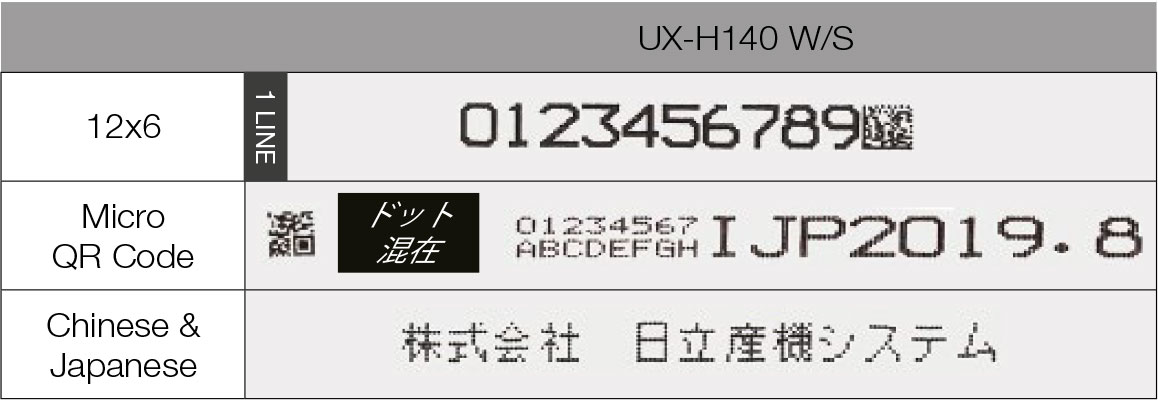

Font (Horizontal × Vertical) Only 1 line of 5×5, 5×7 are available with new print control mode. |
4 × 5 | ✓ (up to 2 lines) |
| 5 × 3 (Chimney characters) | ✓ (up to 2 lines) | |
| 5 × 5 | ✓ (up to 2 lines) | |
| 5 × 7, 5 × 8 | ✓ (up to 2 lines) | |
| 7 × 10 | ✓ (up to 2 lines) | |
| 11 × 11 | ✓ (1 line – Chinese only) | |
| 10 × 12 | ✓ (1 line) | |
| 12 × 16 | ✓ (1 line) | |
| Character height | Approx. 1–4mm (Print distance: 5mm. The maximum character height varies depending on print distance, print speed, temperature, etc.) | |
| Display & input device | WYSIWYG design, Display: TFT LCD (10.4″ color), Input device: Touch panel | |
| Screen language (2 languages selectable) |
English, Chinese, Korean, Thai, Vietnamese, German, French, Dutch, Italian, Spanish, Portuguese, Swedish, Danish, Greek, Russian, Czech, Polish, Arabic, Serbian, Turkish, Hungarian, Bulgarian, Catalan, Romanian, Finnish, Norwegian, Slovenian | |
| Maximum print rate (Character per second) | 4,166 characters per second (Font 5×5, character space 1, 1 line, 10 characters/inch) | |
| Standard characters | Alphanumeric A–Z, a–z, 0–9, symbols (27) and space: Total 90 | |
| User patterns | 200 patterns for each dot matrix | |
| Print functions | Calendar, Count, Font mixture | |
| Barcode printing | code39, ITF, NW-7, EAN-13, EAN-8, UPC-A, UPC-E, code128/EAN-128, GS-1 DataBar | |
| 2D code printing | Data Matrix, Micro QR code (Barcode and 2D code printing are not available with new print control mode) | |
| Message storage capacity | Up to 2,000 messages (Depends on data content) | |
| Input signal | Print target detection, Printing stop, Rotary encoder pulse, Reciprocative printing, Remote control | |
| Output signal | Print in progress or Print complete, Online, Print ready, Fault, Warning | |
| Data interface | RS-232C at baud rates selectable up to 115,200bps | |
| Ethernet (Modbus communication) | IEEE802.3, 100BASE-T | |
| External memory | USB for user data storage | |
| Print head cable length / angle | 3m/6m (in-line/90 degrees) | |
| Operating temperature range | 0–40°C (1067K Ink) | |
| Operating humidity range | 30–90% RH (no condensation) | |
| Power supply (Automatic voltage selection) | AC 100–120/220–240V ±10%, 50/60Hz 120VA | |
| Approval | CE, UL, cUL, RCM, FCC, ICES | |

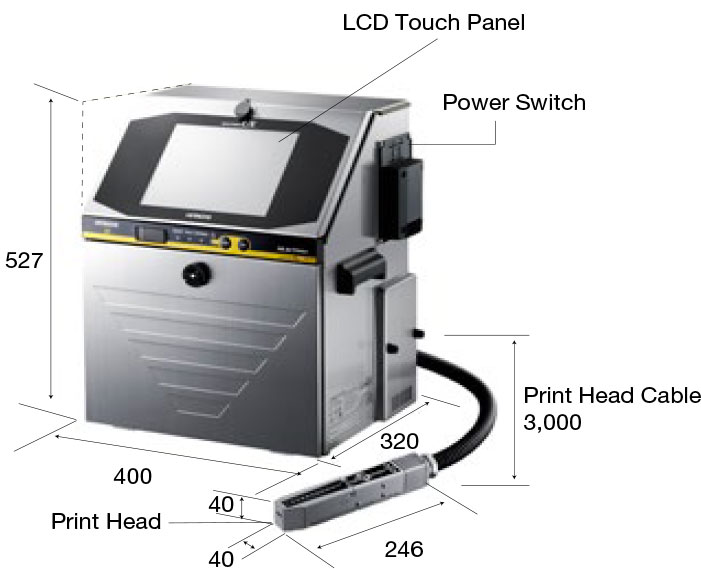

| Dimensions (Width × Depth × Height) | 400 × 320 × 527 mm | |
| International protection | IP65 (Not include print head) | |
| Approximate weight | 27kg |
