RNJET 72 XL

RNJet - Reliable, high resolution large character cartridge-based coding system.

Secondary Packaging Printer
  • Large character print
  • Low-Maintenance High resolution
  • Hassle free UDI Printer

  • Operates standalone with 7” touchscreen LCD Controller and network-based with ability to plug up to 100 printers to special RN Windows-based Software over Ethernet
  • Height up to 72mm, up to 50 readable lines with the same speed
  • Maximum drying time for non-porous material is 10 to 15 seconds
  • Printing at any angle
  • Could print in different colors such as black, pigmented white and yellow, blue, red, etc. No limitations to print dynamic databases. Throw distance up to 15 mm.

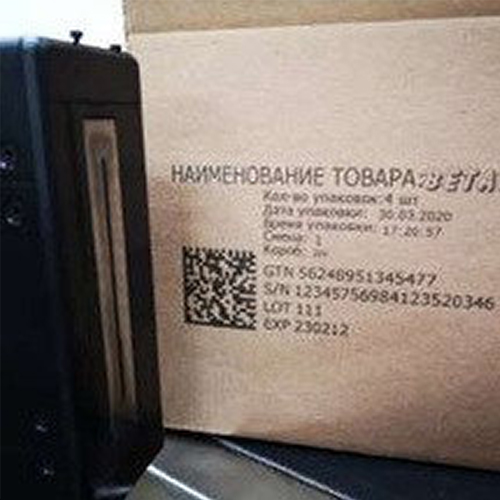

  • Highly recommended to print UDI/GS1 Data matrix with dynamic database in pharmacy; can be part of track and trace solutions.
  • Software interface with different languages, and Windows TrueType fonts (Unicode)
  • Cartridge-based ink system (430 ml cartridge)
NozzlePiezoelectric high-resolution print-head
SoftwareRNSoft
Printing ModeAny angle
Printing HeightUp to 72 mm
Printing DistanceUp to 15 mm
Print ContentText, Auto Date and Time, Expiry Date, Batch Number, Serial Number, shifts, Logo, QR Code, Barcodes, Databases and GS1
Supported database format.csv, .txt
StorageInternal Memory: Up to 5000 Messages
Printing LengthUp to 4600 mm
Printing Speed180 dpi = Up to 60 m/min
100 dpi = Up to 90 m/min
Ink ColorBlack, White, Red, Yellow, Pink, Light Blue, Purple, and many more
External InterfaceUSB, RS232, Ethernet
Input Power12V ⎓ 5A
Operating ConditionsTemperature: 0°C – 45°C
Relative Humidity: 20% – 80%
Printing MaterialPorous and non-porous material
Ink Supply System430ml cartridge-based system
