DLF Series

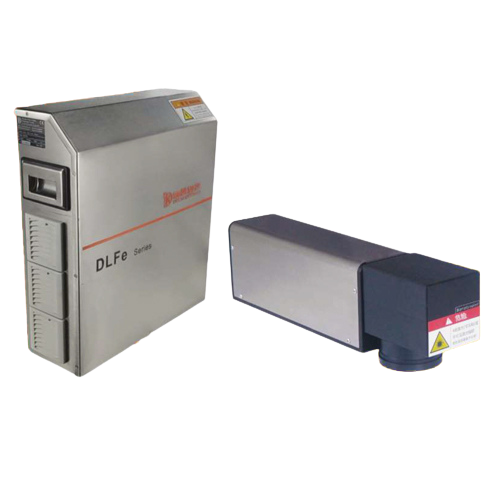

Fiber Laser Marking Machine

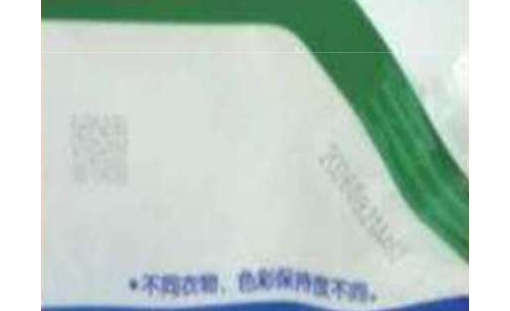

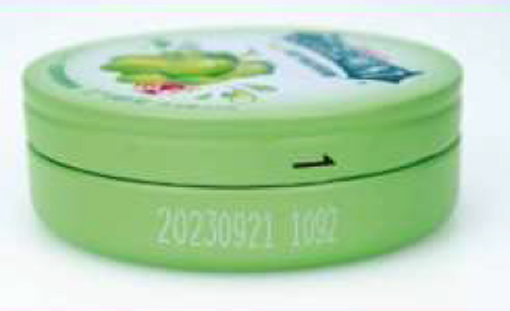

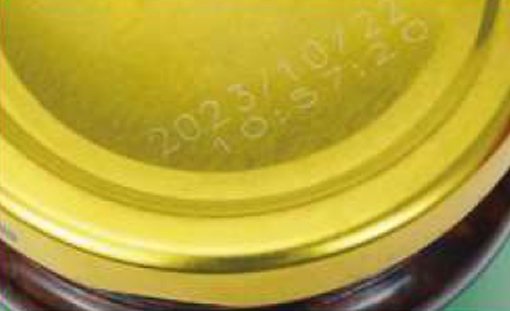

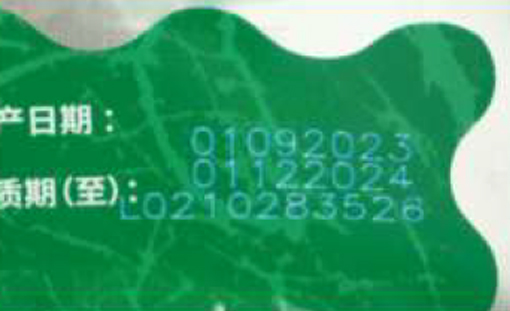

This series is our economical filber laser marking machine,stable performace and lower cost. This laser is useing intelligent vetor control algorithm, marking speed is greatly improved. The laser is a compact size, lower maintenance, no consumables coding system and it provides high quality coding. With optimized marking font library, this laser can be commonly used in food, cosmetics and other industries to print high contrast and permanently message & logo on hard plastic (PE/PP), flexible packaging materials, metal and other materials to ensure the traceability of products. The identification of filber laser will be clearer than CO2 laser marking on the non-metal applications.

High Stability
  • New intelligent control algorithm for high quality marking effect.
  • Enhanced anti-electromagnetic interference design to ensure the stable running in a harsh environment.
  • 24 hours continuous working.
High Efficiency
  • Faster marking speed, up to 1000 pcs per second.
  • Almost unlimited font, graphics and bar code applications.
Easy Integration
  • Compact independent design, can be better integrated into the existing production line.
  • Small size, can adapt to a variety of installation space.
  • Innovative interactive way is easy to learn&understand, more convenient and fast operation.
  • Multiple interfaces can connect and interact to other machines and smoke extracter.
Cost Effective
  • High efficiency air cooling design to achieve low maintenance and long lifetime.
  • MTBF is up to 100,000 hours.
  • No consumable, saving the use cost.
  • Permanent identification, reliable anti-counterfeiting string selection.
Technical Parameter:
Technical Parameter DLF200e DLF300e
ApplicationsSoft packaging film, PP, metal, etc.
Marking MethodXY axis scanning simultaneously
Marking Mode150m/minute200m/minute
Static Mark / Flying MarkMultiple products can be marked simultaneously
Marking Laser TypeFiber Laser
Wavelength1064 nm
Output20 W30 W
Guiding LaserRed light guiding
Marking Area/Distance (mm) 70×70/107, 110×110/187, 150×150/245, 175×175/272,
200×200/324, 250×250/414, 300×300/465
Scanning Speed<8000 mm/s
Software ControllerLinux system, 10 inch touch screen
FontsJSF, True Type, DMF
Character – Bar CodeCode39/Code25/EAN-13/Code128 etc
Character – QR CodePDF147/QR Code/Data Matrix
Character – ImageDXF/PLT vector diagram input/output
Marking StatusRunning, ready, fault status
Character Size0.1 mm – Maximum marking area
Input/Output2 way input / 3 way output, customizable
InterfaceSD card interface / USB2.0 / Communication interface
Laser Installation DirectionAny direction
Cooling WayAir cooling
Power Supply50-60Hz; 220V, optional 110V
Power Consumption200 W300 W
Working Temperature0-40°C
Working Humidity10% ~ 90% no condensation
IP RatingIP54

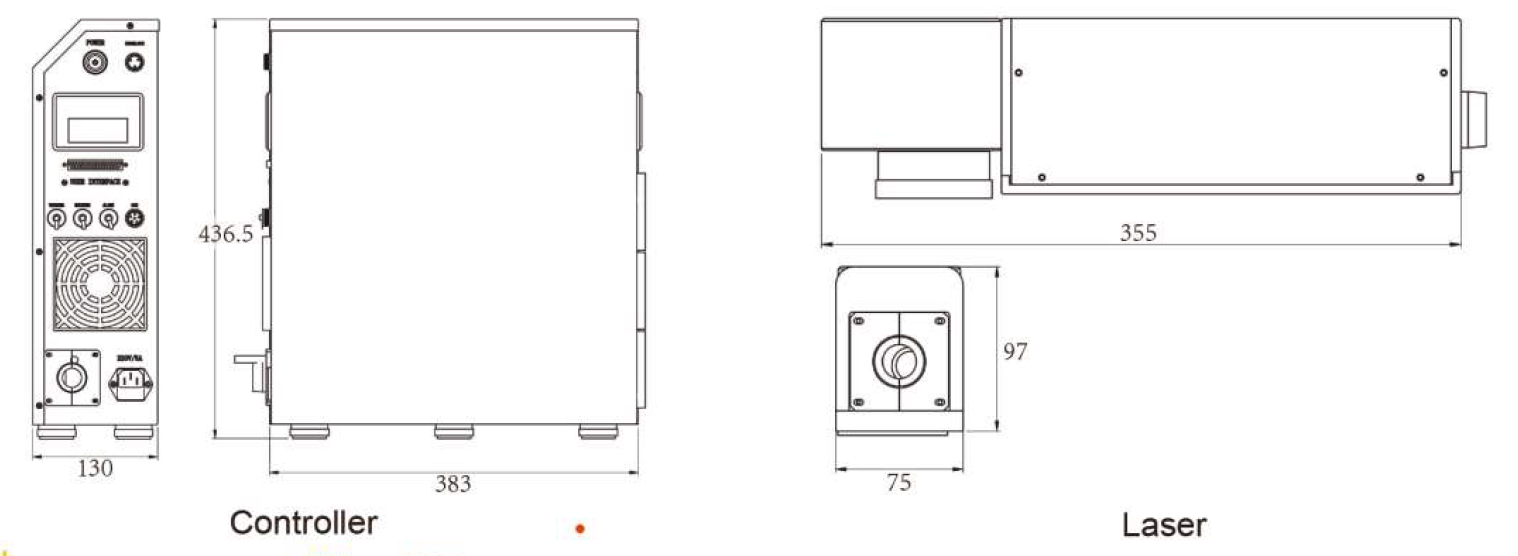

Dimension Controller: 383 mm × 130 mm × 437 mm,
Laser: 355 mm × 75 mm × 97 mm
Technical Parameter DLF200 DLF300 DLF500
ApplicationSoft-packaging, PP, Metal, etc.
Scan ModeX & Y axial simultaneous scan
Marking Mode – Flying Mark120 m/min200 m/min250 m/min
Marking Mode – Static MarkMultiple products can be marked simultaneously
Marking Laser – TypeFiber Laser
Marking Laser – Wavelength1064 nm
Marking Laser – Output20 W30 W50 W
Guide LaserRed light positioning
Marking Area/Focal Distance (mm) 70*70/107, 110*110/187, 150*150/245, 175*175/272,
200*200/324, 250*250/414, 300*300/465, etc.
Scan Speed4000 mm/s, 12000 mm/s optional
Software ControllerLinux system, 10-inch touch screen
Character Type – FontsSingle/Double font, Dot-matrix font
Character Type – Bar CodeCode39/Code25/EAN-13/Code128, etc.
Character Type – QR CodePDF147/QR Code/DATAMATRIX
Character Type – GraphicDXF/PLT format vector image input/output
Marking Condition – Marking StatusOperation, Ready, Error status
Marking Condition – Character Size0.1 mm–Max. marking area
Input/OutputTwo-way input/Three-way Output, can be customized
ConnectionSD card/USB 2.0/Communication interface
Installation DirectionArbitrary direction
CoolingAir cooling
Power Supply100-220 V AC, 50–60 Hz
Power300 W
Temp.0–40 ℃
Humidity10%–90% (non-condensation)
IP RateIP54, IP65 optional

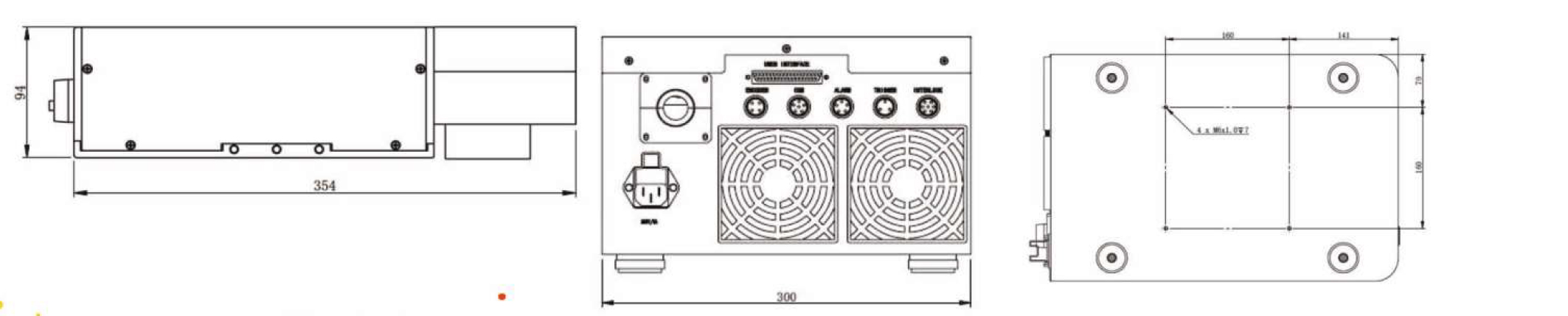

Dimension (mm) Laser body: 354×79×95;
Controller Screen: 305×207×56;
Controller box: 450×300×180

Note: Marking speed depends on packaging material and print content.

Technical Parameter
DLF1000
Application Soft-packaging, PP, Metal, etc.
Scan Mode X & Y axial simultaneous scan
Marking Laser
Type
Wavelength
Output		 Fiber laser generator
1064 nm
100 W
Guide Laser Red light positioning
Marking Area/Focal Distance (mm) 70×70/107, 110×110/187, 150×150/245, 175×175/272, 200×200/324, 250×250/414, 300×300/465
Scan Speed 10000 mm/s
Software Control Linux system, 10-inch touch screen
Character Type
Fonts
Bar Code
QR Code
Graphic		 Single/Double font, Dot-matrix font
Code39/Code25/EAN-13/Code128, etc.
PDF147/QR Code/DATAMATRIX
DXF/PLT format vector image input/output
Marking Status Operation, Ready, Error status
Character Size 0.1 mm–Max. marking area
Input/Output Two-way input/Three-way output, can be customized
Connection SD card/USB 2.0/Communication interface
Installation Direction Arbitrary direction
Cooling Air cooling
Power Supply 110/220 V; 50-60 Hz
Power 1000 W
Temp. 0–40 ℃
Humidity 10 % ~ 90 %, non-condensation
IP Rate IP54

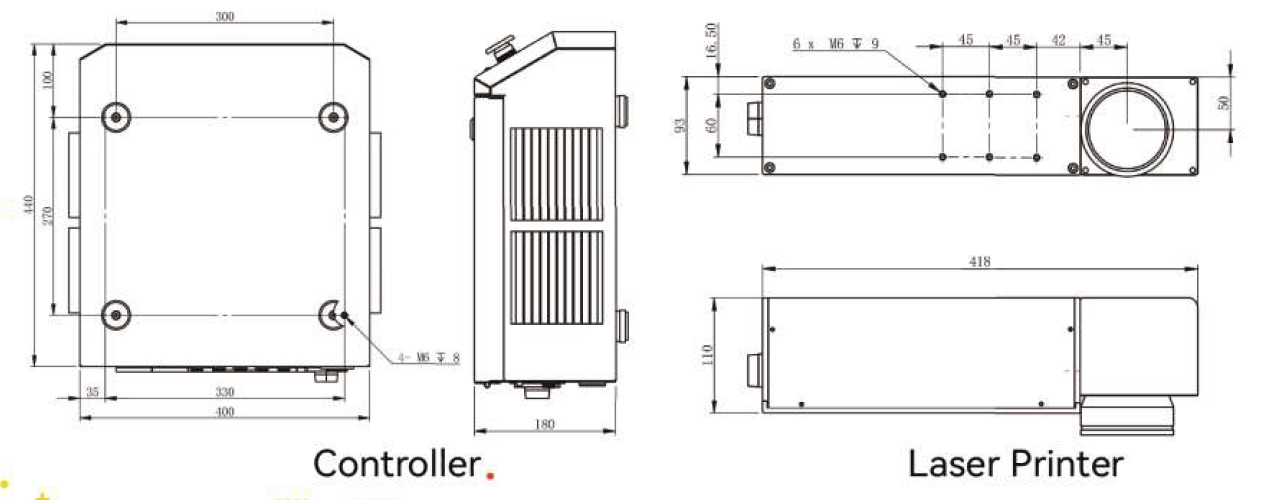

Dimension Controller 400×440×180 mm; Laser printer: 418×93×110 mm
