Thermal Inkjet Printer(TIJ) technology allows non-contact printing flexibility to mark on flat surface. It has new Anti-shock mounting mechanism for printer protection. TIJ printer have nozzle switching and self-cleaning capabilities to extend cartridge lifetime.
| Features | |
|---|---|
| Languages Support | Multi languages (English – default, Arabic, Brazilian, Chinese, Dutch, German, Korean, Portuguese, Spanish and Russian) |
| Free Template Design | Powerful template design with PC software |
| Font | Windows True Fonts |
| Database Support | SQL, ACCESS, EXCEL, CSV, TEXT, etc. |
| Barcode Support | CODE 11, CODE 2OF5 STANDARD, CODE 2OF5 INTERLEAVED, CODE 2OF5 IATA, CODE 2OF5 MATRIX, CODE 2OF5 DATALOGIC, CODE 2OF5 INDUSTRY, EAN8, EAN13, UPC12, UPCA, UPCE, CODE 39, CODE 39 EXTENDED, EAN UCC128, CODABAR 2, CODE 128, GS1 DATABAR EXPANDED, GS1 DATAMATRIX, UCC128, QRCODE, DATAMATRIX, GS1 DATABAR EXPANDED STACKED, GS1 128, QRCODE 2005 |
| Receive Data from 3rd Party Devices | Ethernet RJ45 port (on PC / Laptop) |
| Technical Parameters | |
| Printing Technology | HPTIJ2.5 |

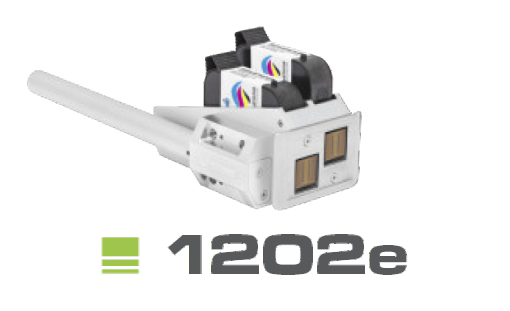

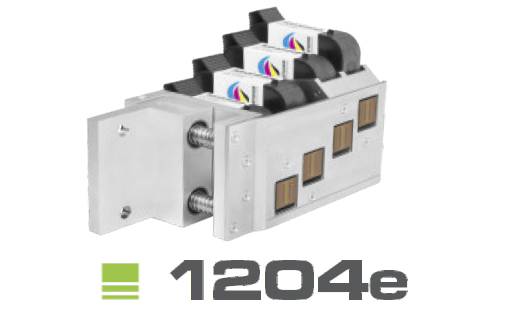

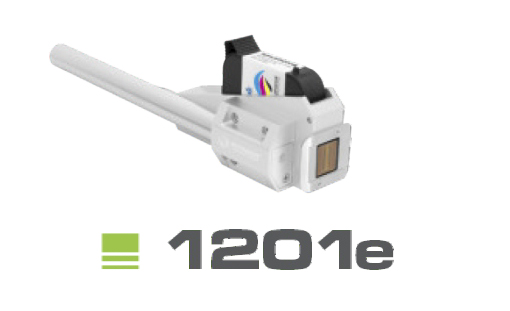

| Printable Heights | 1201e: 1~12.7mm (up to 4 heads) 1202e: 1~25.4mm (up to 2 heads) 1204e: 1~50.8mm (1 head only) |
| Printing Objects | Alphanumeric, Logos, Date/Time, Expiry date, Julian date, Shift Code, Counter/Box Lot and Barcode |
| Printing Speed | 92m/min 300x300dpi 30m/min 600x600dpi |
| Resolution | Up to 600x600dpi |
| Density | 3 levels |
| Throw Distance | 1~5mm |
| Operation Interface | PC software |
| Port | Ethernet 100 Mbps port DB15 I/O port Photo sensor port Encoder port |
| Ink Management | Automatic ecognition the ink type (aqueous or solvent) and adjustment of printing parameters Automatic nozzle switching and cleaning of cartridges to extend lifetime Ink consumption calculator |
| Ink Solution | Aqueous ink for porous, semi-porous media and foods Solvent ink for semi and non-porous media Support various colors of ink: Black, Red, Green, Blue, White,… Support ink delivery system inkFeederTM used to feed the ink to cartridges |
| Mounting | Controller: small hanger Print head: anti-shock mechanism, supports side-by-side and upside-down printing |
| Power Supply | AC 100V-240V, 50/60HZ, 2.0A, Max consumption: 138W |
| Operating Environment | 5 – 50°C and 90% air humidity, non-condensing |
| Warranty | 12 months limited warranty |
| Dimensions (mm) | Controller: 230 x 182 x 45.5 mm Printhead max: 141 x 101 x 107 mm |
