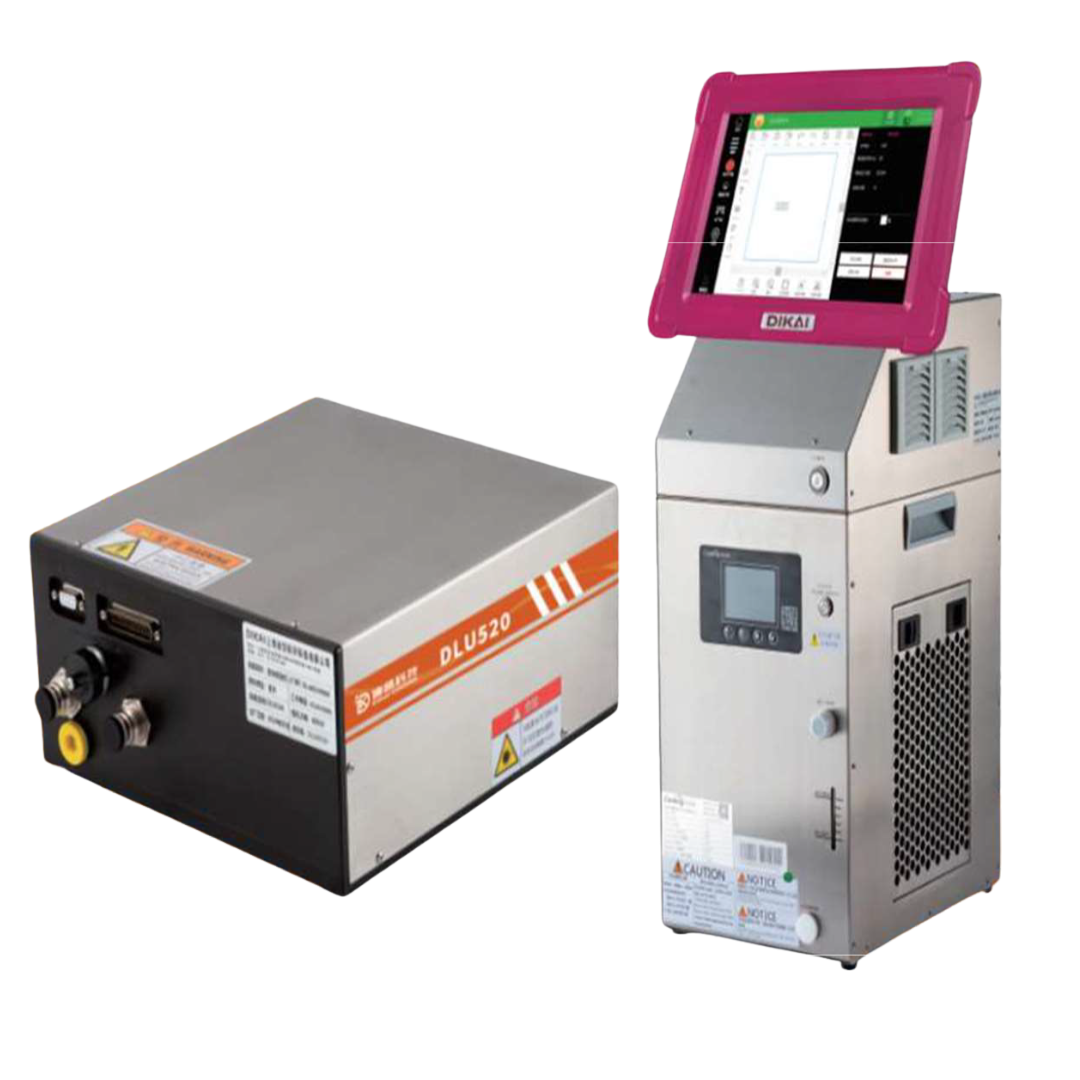

DLU 520
UV Laser printer

The Dimension of the printer body is just 274x258x125mm,suitable for small installation spaces. It can replace ITO and other contact coding machines to code packaging films. The coding effect is clear and cannot be erased. There is no consumables for printers and no pollution will be produced by the machine. Contactless coding working principle. It can meet the production requirements from various manufacturers and industries.

Replace TTO
  • Replace TTO to code packaging films
  • The effect is clear and can’t be erased on wider materials
  • NO consumables and pollution, suitable for various coding requirements
Easy Integration
  • Smaller size, suitable for various installation spaces
  • Easy to learn the interactive methods, convenient to operate
  • Enhanced anti-electromagnetic interference design ensures stable operation in harsh environments
Higher Efficiency
  • Higher speed, maximum 700 characters per second
  • Almost unlimited fonts, graphics and code applications
  • 24 hours of continuous operation
Cost Effective
  • Average trouble-free operation time up to 20000 hours
  • No consumables required, saving costs
  • Permanent identification, reliable anti-counterfeiting and anti-channeling option
Technical Parameter:
Model DLU520
Application Flexible Packaging, HDPE, LDPE, PP, Metal, etc.
Scan Mode X & Y axial simultaneous scan
Marking Mode Flying Mark: 150 m/min
Static Mark: Multiple products can be marked simultaneously
Marking Laser Type: UV Laser
Wavelength: 355 nm
Output: 5 W
Guide Laser Blue light positioning
Marking Area/Distance 70×70/135, 110×110/218
Scan Speed ≤8000 mm/s
Character Type Fonts: Single/Double font, Dot-matrix font
Bar Code: Code39, Code25, EAN-13, Code128, etc.
QR Code: PDF147, QR Code, DATAMATRIX
Graphic: DXF/PLT format vector image input/output
Marking Status Operation, Ready, Error status
Character Size 0.1mm – Max. marking area
Input/Output Two-way input/Three-way output, can be customized
Connection SD card/USB2.0/Communication interface
Installation Direction Arbitrary direction
Cooling Water cooling
Power Supply 100-240V, 10A, 47/63Hz
Wattage 600W
Working Temperature 5-45℃
Working Humidity 10%-90% (non-condensation)
IP Rate IP54
Dimension (mm) Laser body: 274 × 258 × 125
Controller: 305 × 207 × 56
Water cooler: 345 × 249 × 560

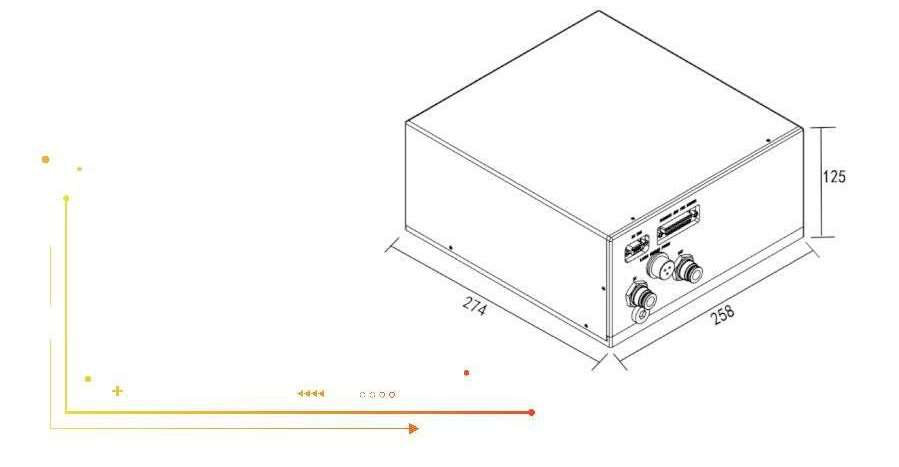

Dimension:(mm)
