DLU Series

HITACHI continuous inkjet printer technology also allows non-contact printing flexibility to mark on rough, uneven or varied surfaces from any direction.

DLU Series
UV Laser Printer

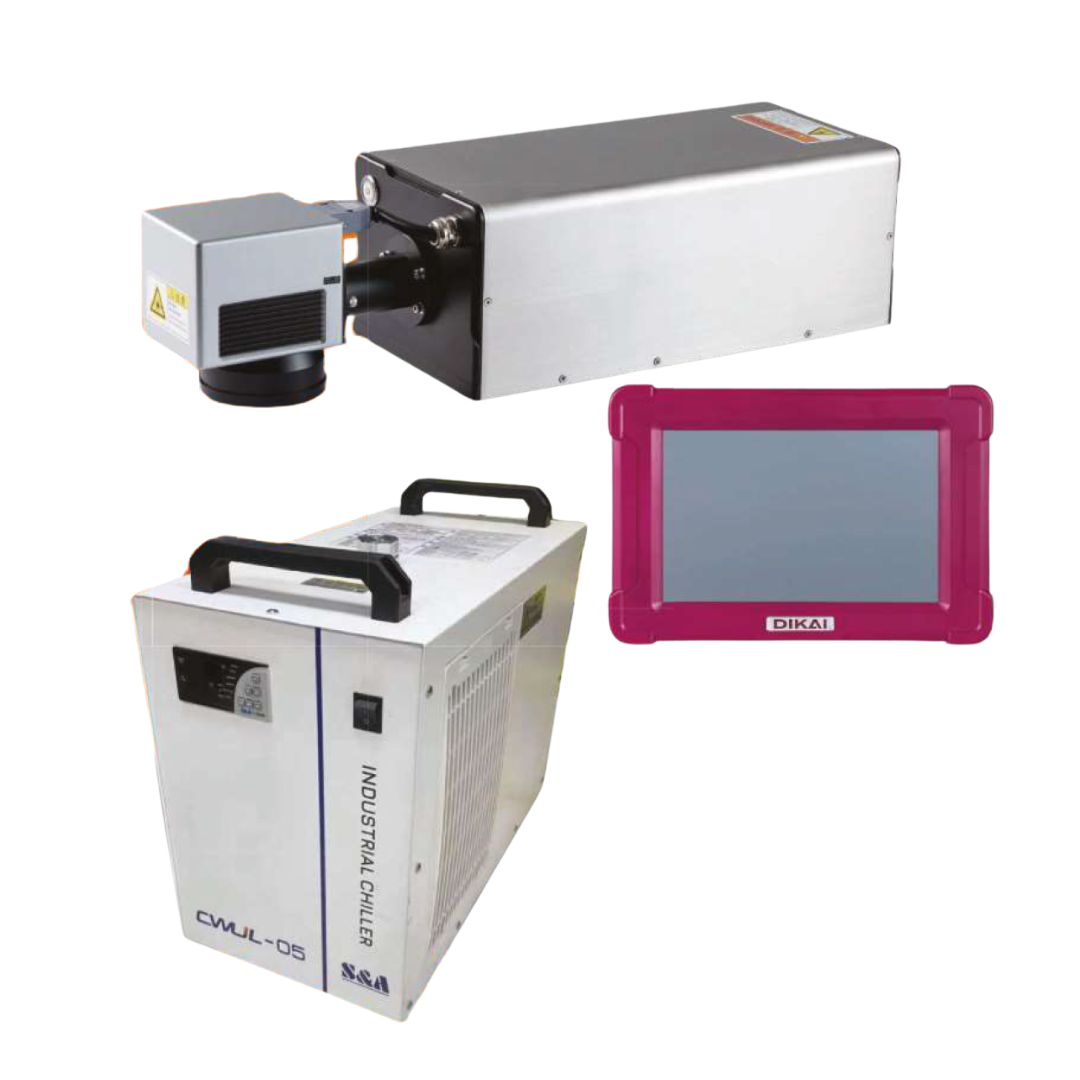

DLU Series UV Laser Printer The DLU series UV laser printer adopts a new intelligent vector control algorithm, significantly increasing marking speed. The unique laser control technology is suitable for more than 90% of packaging material types and can easily achieve the best prints on films, hard plastics, metals, and other materials. Its compact size, low maintenance, no consumables, and high-quality marking make it an efficient solution. It provides permanent and high-contrast prints to ensure product traceability, anti-counterfeiting, and anti-channeling.

High Stability
  • Brand-new intelligent control algorithm ensures high-quality printing.
  • Anti-electromagnetic interference design, allowing 24 hours of continuous operation.
High Efficiency
  • Up to 700 cps.
  • Can print almost all fonts, QR codes, images, and graphics.
  • Widely used in films, cardboard, paper boxes, glass, PET, etc.
Easy Integration
  • Compact size, easy integration onto various packaging lines, and suitable for narrow installation spaces.
  • Friendly user interface for more convenient operation.
Cost Effective
  • MTBF up to 20,000 hours.
  • No consumables, reducing operation costs.
  • Permanent identification to protect brands and ensure product traceability.
Technical Parameter:
Parameter DLU500i DLU1010i
Application Soft-packaging, HDPE, LDPE, PP, Metal, etc.
Scan Mode X & Y axial simultaneous scan
Marking Mode Flying Mark: 150 m/min Flying Mark: 300 m/min
Static Mark Multiple products can be marked simultaneously
Marking Laser Type: UV Laser, Wavelength: 355 nm
Output Power 5 W 10 W
Guide Laser Blue light positioning
Marking Area/Focal Distance (mm) 70*70/135, 90*90/165, …, 800*800/1250
Scan Speed ≤8000 mm/s
Character Type Fonts: Single/Double font, Dot-matrix font
Bar Code: Code39, Code25, EAN-13, Code128
QR Code: PDF147, QRCODE, DATAMATRIX
Graphic: DXF/PLT format vector image input/output
Marking Condition Marking Status: Operation, Ready, Error status
Character Size: 0.1 mm – Max. marking area
Input/Output Two-way input/Three-way Output, can be customized
Connection SD card/USB 2.0/Communication interface
Installation Direction Arbitrary direction
Cooling Water cooling
Power Supply 100-220 V AC, 50-60 Hz
Power 600 W
Temperature 10-30 °C
Humidity 10%-90% (non-condensation)
IP Rate IP54, IP65 optional
Dimensions (mm) Laser body: 599×185×146
Controller: 305×207×56
Water cooler: 580×290×470

Note: Marking speed depends on packaging material and print content.
