HITACHI continuous inkjet printer technology also allows non-contact printing flexibility to mark on rough, uneven or varied surfaces from any direction.

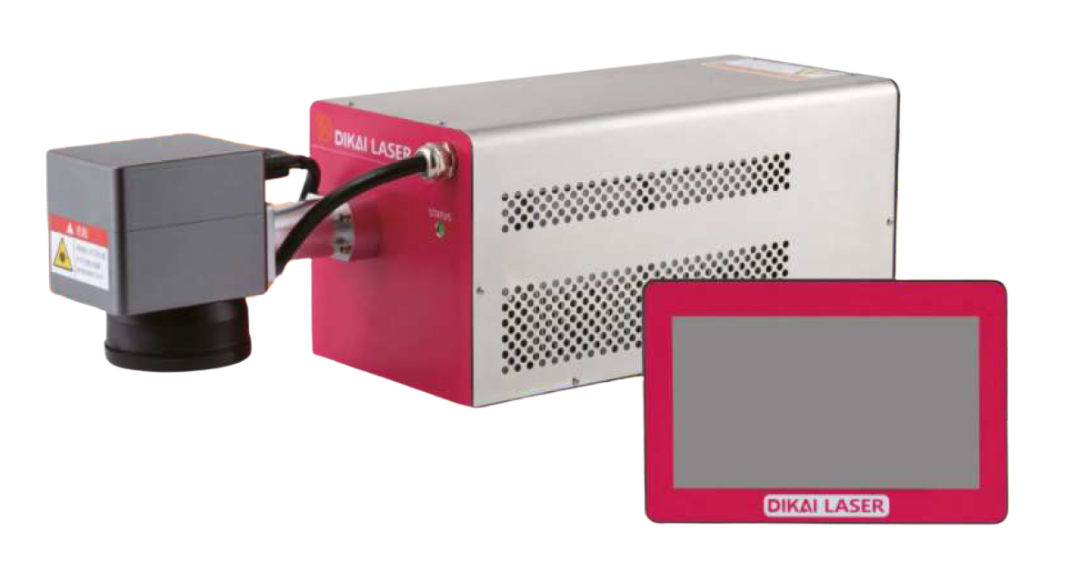

DLU500X Pro UV laser printer adopts a new intelligent vector control algorithm, the marking I speed significantly increased. The unique laser control technology can easily get the best prints on films, hard plastics, metals and other materials. Advantages includc compact size, low-maintenance, no consumables. and high-quality marking. Permanent and high-contrast prints ensures product traceable, anti-counterfeiting and anti-channeling.
Brand-new intelligent control algorithm ensures high-quality printing;
Anti-electromagnetic interference design; 24 hours of continuous operation.
Compact size, easy integration onto various packaging lines, and suitable for narrow installation space;
Friendly user interface, more convenient operation.
| Model | DLU500X Pro |
| Application | Soft-packaging, HDPE, LDPE, PP, Metal, etc. |
| Scan Mode | X & Y axial simultaneous scan |
| Marking Mode |
Flying Mark: 150 m/min Static Mark: Multiple products can be marked simultaneously |
| Marking Laser |
Type: UV laser generator Wavelength: 355 nm Output: 5 W |
| Guide Laser | Blue light positioning |
| Marking Area/Focal Distance (mm) | 70×70/135, 90×90/165, 110×110/218, 130×130/256, 150×150/255, 175×175/305, 200×200/350, 220×220/400, 250×250/435, 300×300/520, 350×350/561, 400×400/573, 450×450/670, 500×500/880, 600×1000, 800×800/1250 |
| Scan Speed | ≤8000 mm/s |
| Character Type |
Fonts: Single/Double font, Dot-matrix font Bar Code: Code39/Code25/EAN-13/Code128, etc. QR Code: PDF147/QR CODE/DATAMATRIX Graphic: DXF/PLT format vector image input/output |
| Marking Condition |
Marking Status: Operation, Ready, Error status Character Size: 0.1 mm – Max. marking area |
| Input/Output | Two-way input/Three-way Output, can be customized |
| Connection | SD card/USB 2.0/Communication interface |
| Installation Direction | Arbitrary direction |
| Cooling | Water cooling |
| Power & Temperature |
Power Supply: 220 V AC, 50-60 Hz, 110 V optional Power: 600 W Temperature: 10-30 ℃ Humidity: 10%-90% (non-condensation) |
| IP Rate | IP54, IP65 optional |
| Dimension (mm) |
Laser body: 569×180×152 Controller screen: 305×207×56 Water cooler: 580×290×470 |
